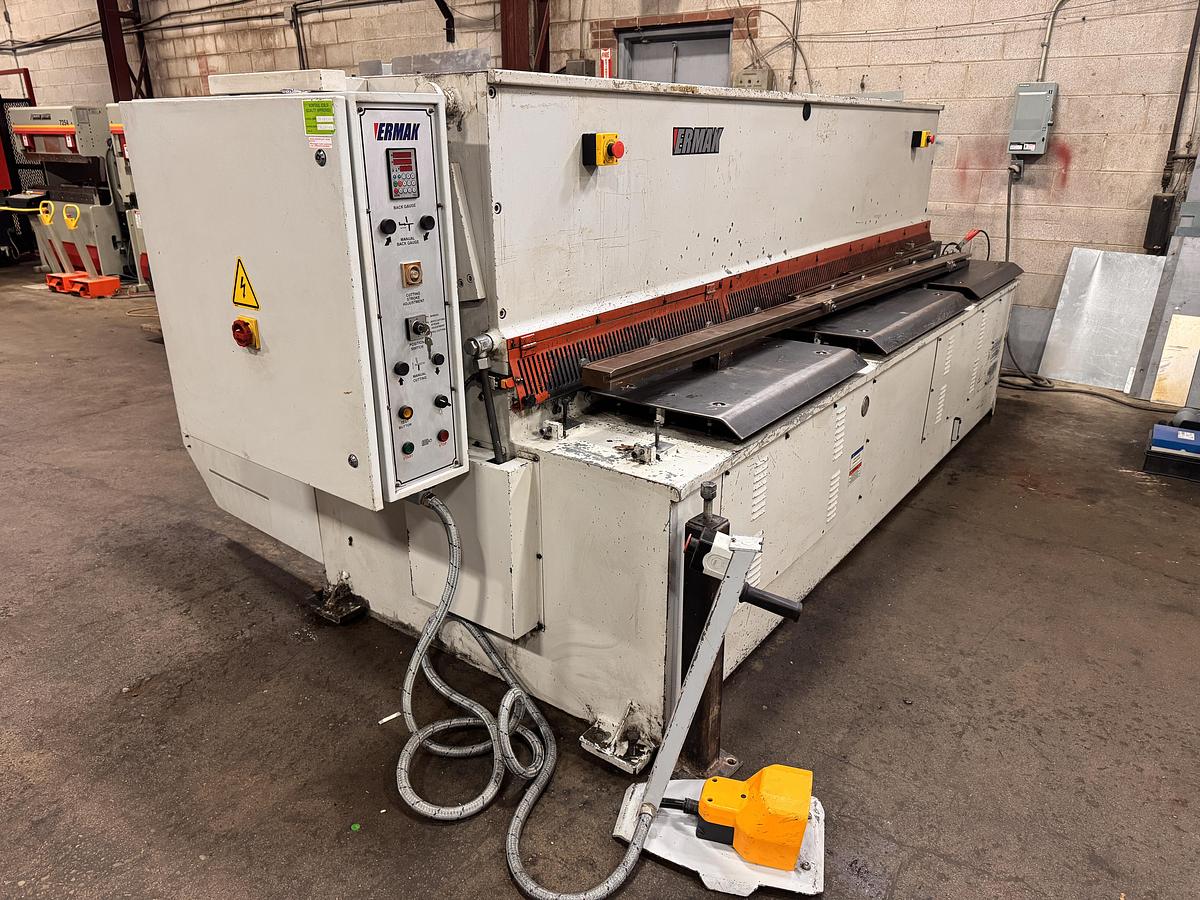

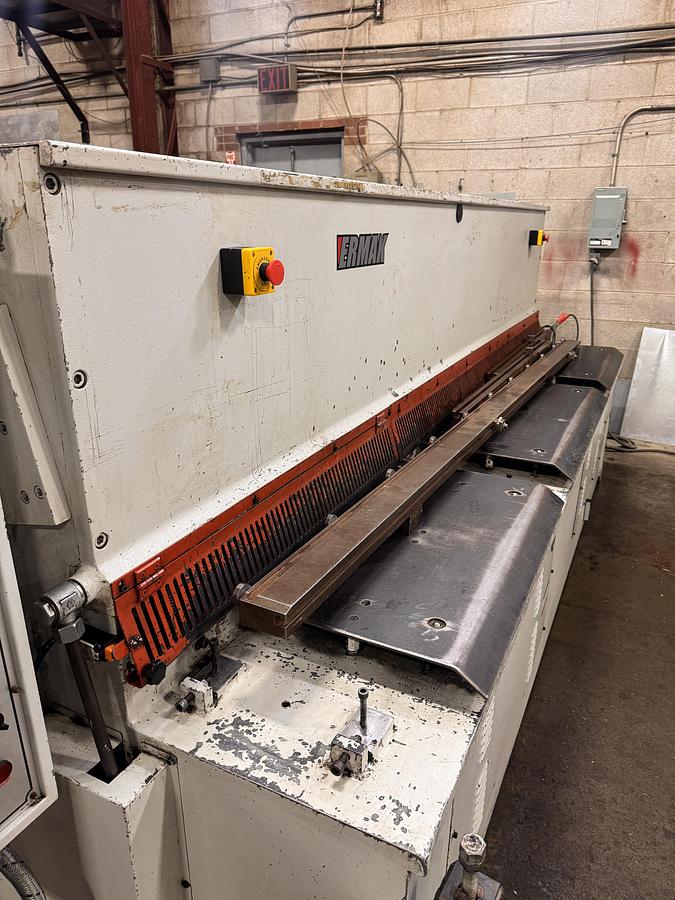

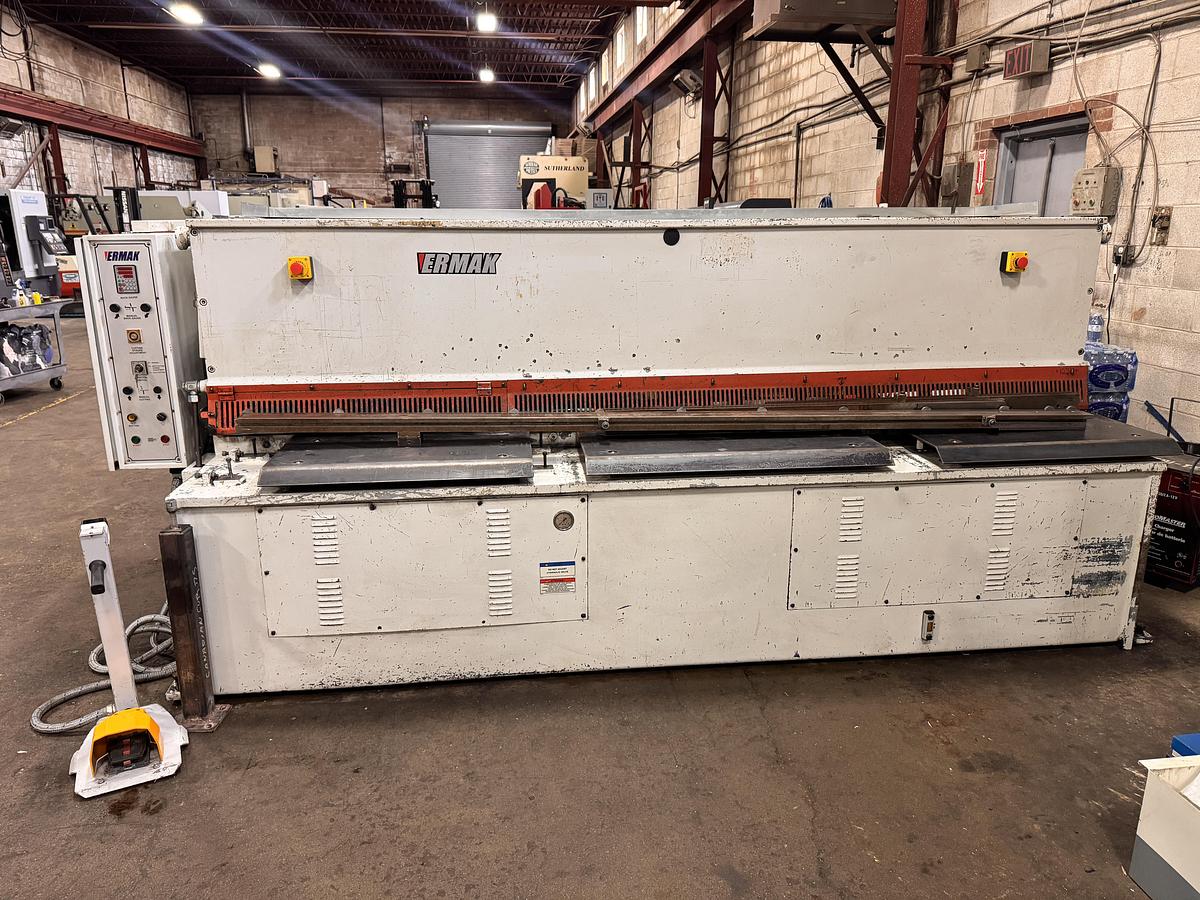

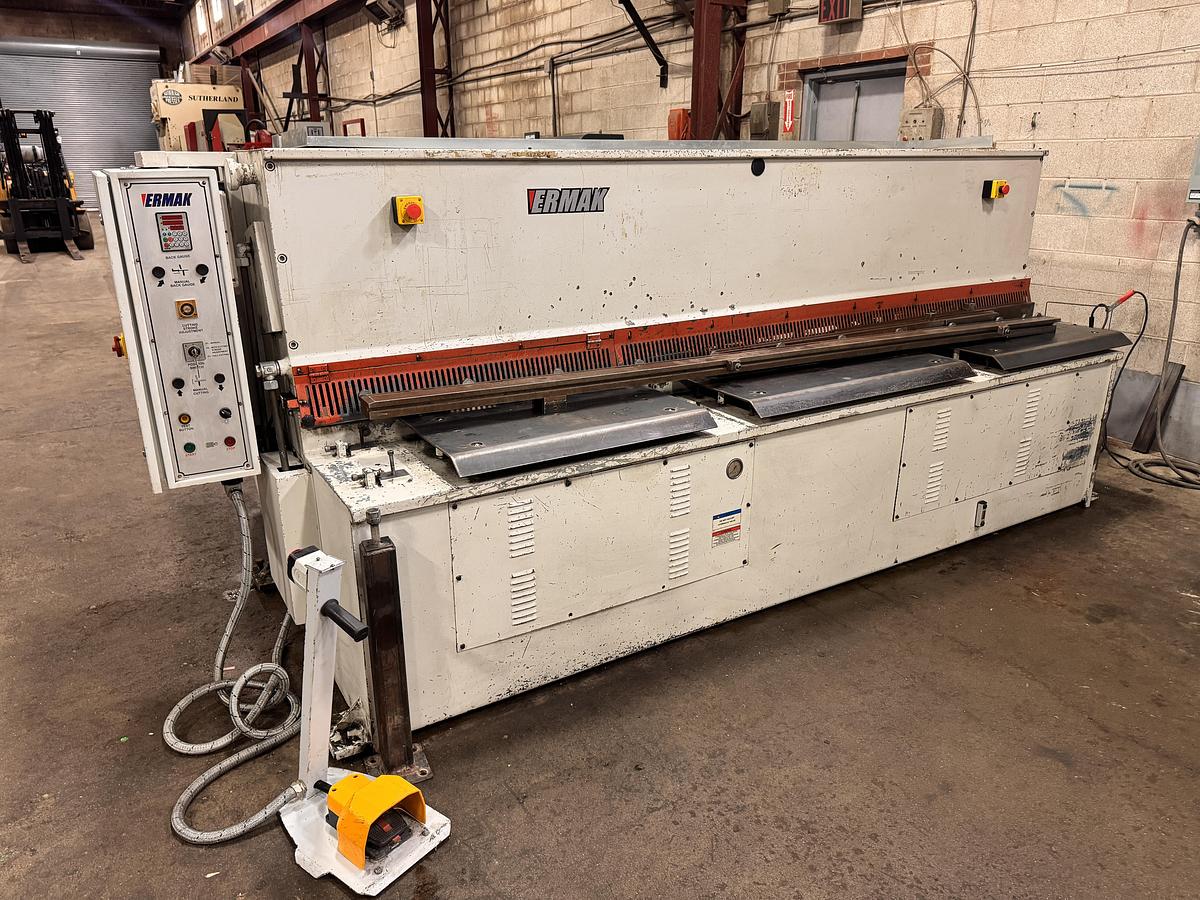

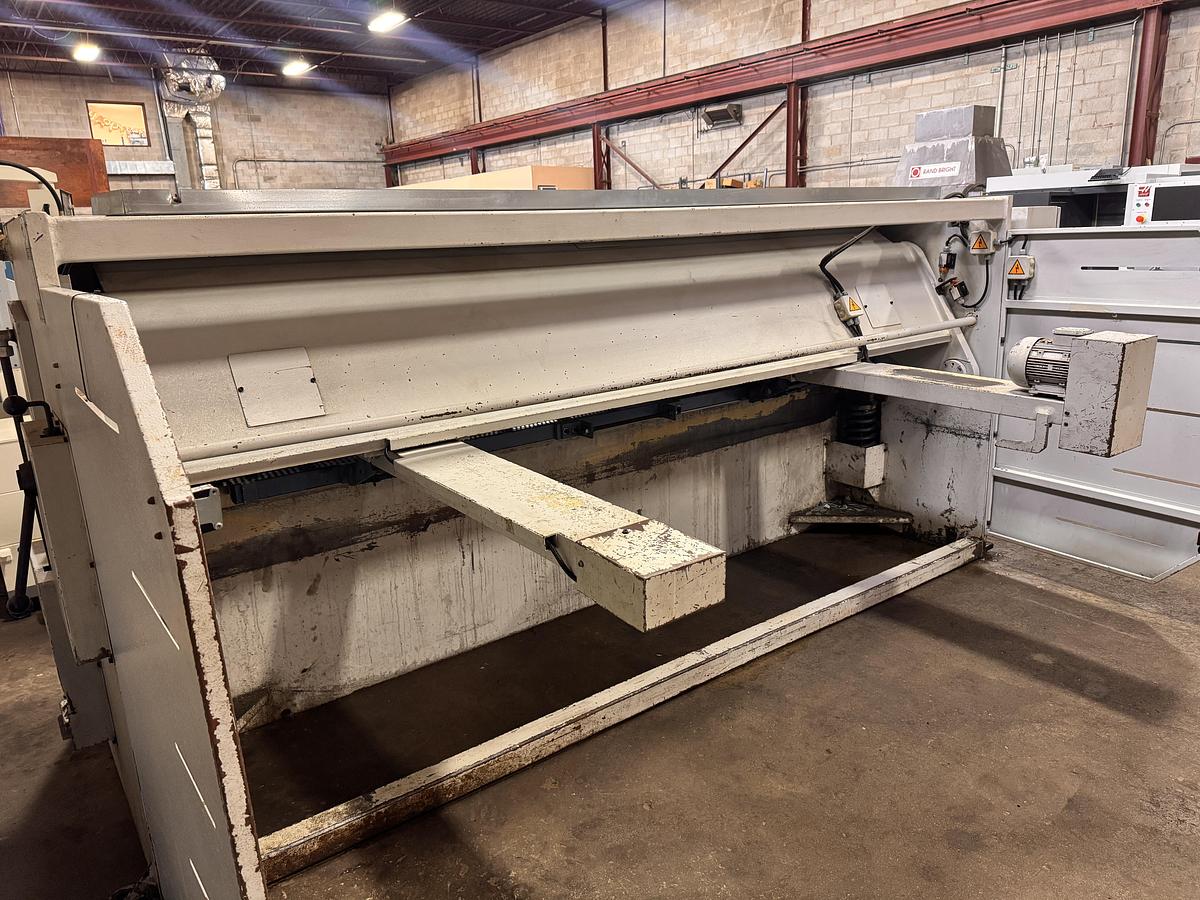

1/4" X 10', ERMAK, HYDRAULIC SHEAR
Specifications
| Manufacturer | ERMAK |
| Model | HGS 10 - 1/4 |
| Year | 2008 |
| Stock Number | 10070 |
| OVERALL CUTTING LENGTH | 10' |
| CUTTING CAPACITY - MILD STEEL | 1/4" |
| NO. OF HOLD DOWNS | 15 |
| STROKES PER MINUTE | 18 |
| TABLE HEIGHT | 31.5" |
| BACKGAUGE STROKE | 39.4" |
| MAIN MOTOR | 15 HP |
| APPROX. MACHINE DIMENSIONS | 154" X 74" X 61" TALL |
| APPROX. MACHINE WEIGHT | 12,125 LBS. |
| ELECTRICS | 575V/3 PH/60 |
| OIL CAPACITY | 40 GAL. |
Equipped With

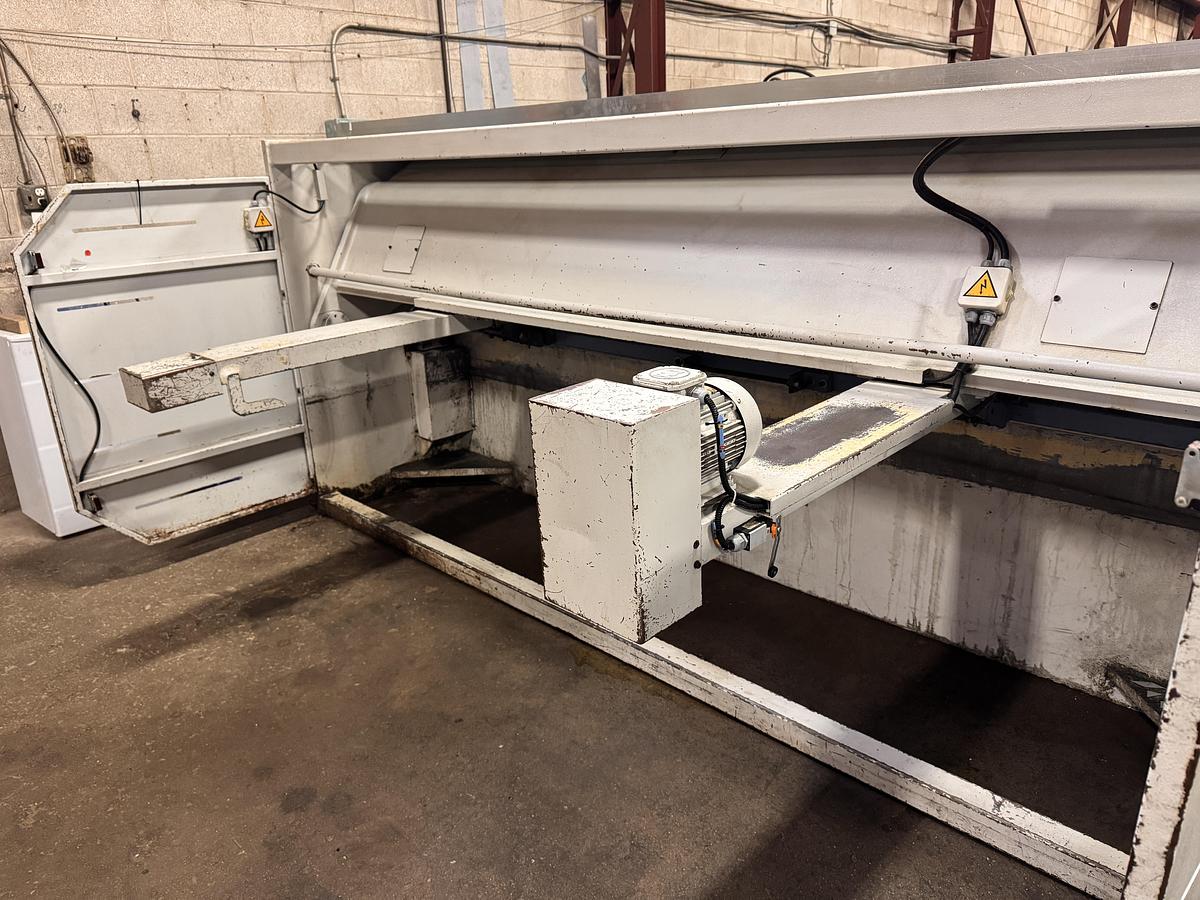

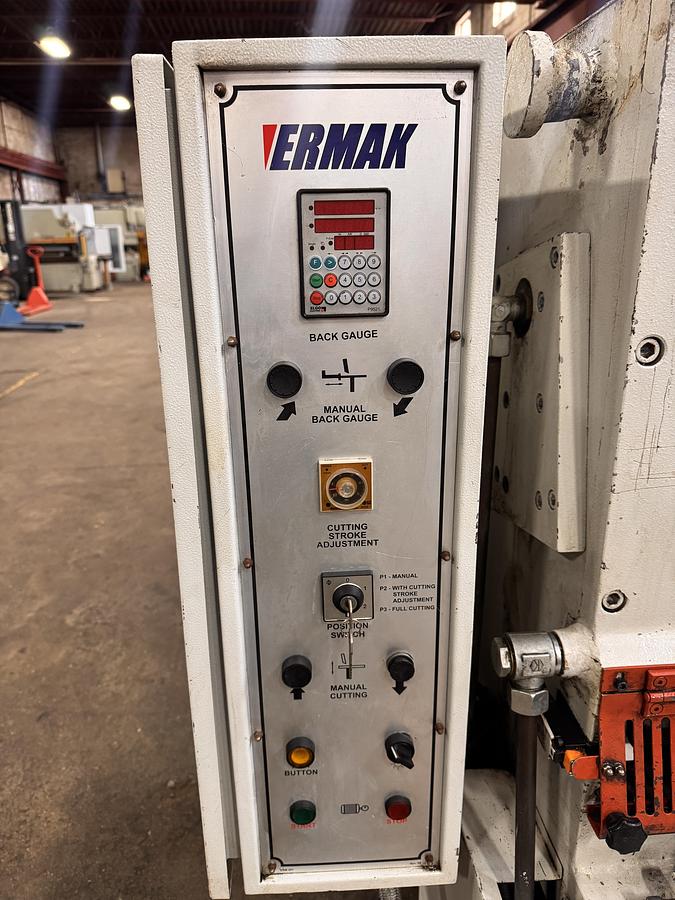

FRONT OPERATED POWER BACKGAUGE
10' SQUARING ARM
(2) SUPPORT ARMS

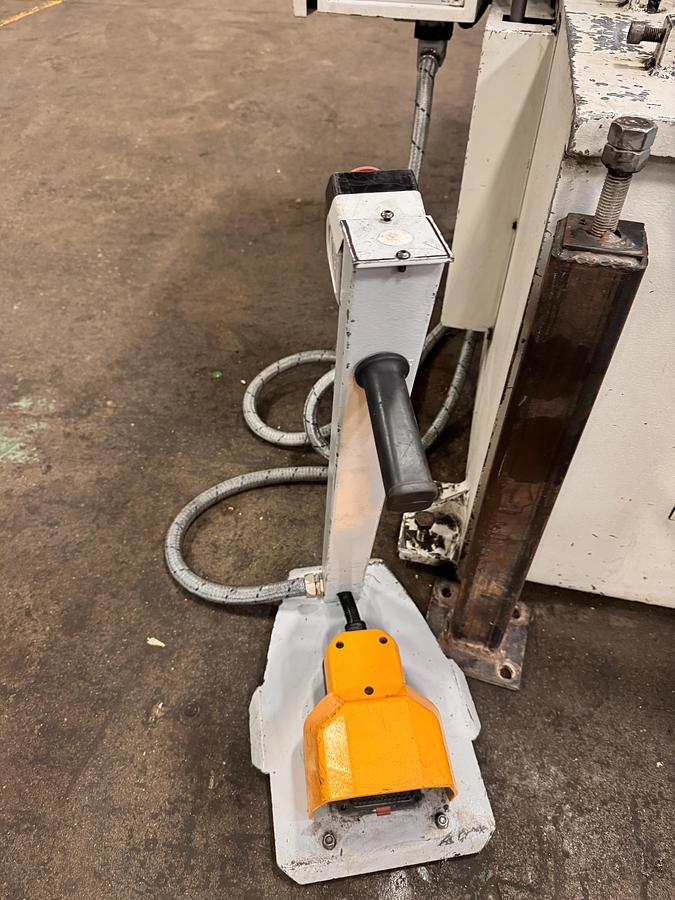

FOOT PEDESTAL CONTROL

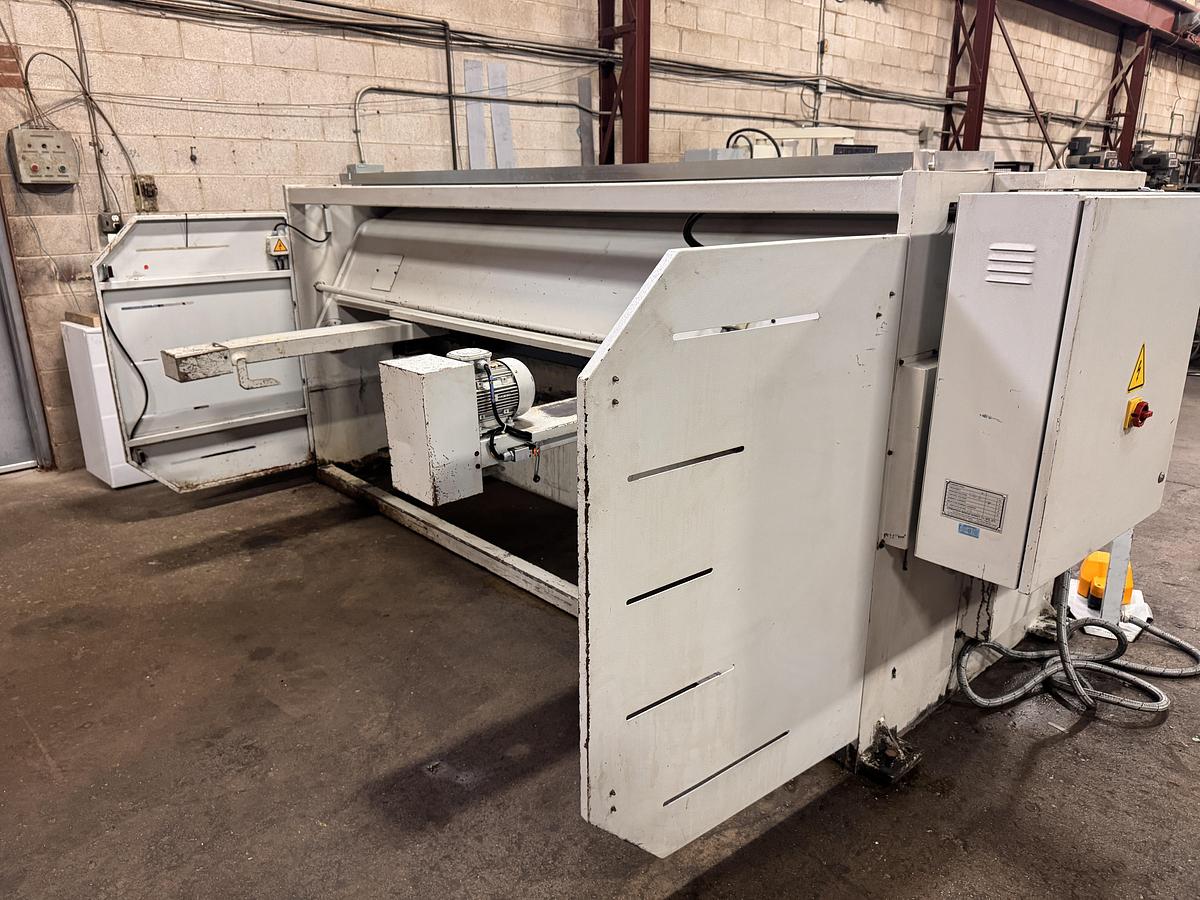

REAR SAFETY LIGHTS & SIDE GAURDING
The used Ermak Hydraulic Shear, model HGS 10 - 1/4, is designed for precision cutting needs. It features a robust 10-foot cutting length and can handle mild steel up to 1/4" thick. This machine operates with a foot pedestal control and comes equipped with a front-operated power back gauge for precise measurements. It includes essential features such as a squaring arm and support arms, providing stability and accuracy during operation. This hydraulic shear has 15 hold downs and can perform 18 strokes per minute, supported by a main motor of 15 HP. The machine has a table height of 31.5 inches and a back gauge stroke of 39.4 inches. For safety, it is fitted with rear safety lights. It has dimensions of 154 inches by 74 inches by 61 inches tall and weighs approximately 12,125 pounds. The machine operates on a 575V/3 PH/60 electric supply and has an oil capacity of 40 gallons. Its solid construction and efficient performance make it suitable for industrial environments requiring reliable cutting capabilities.
